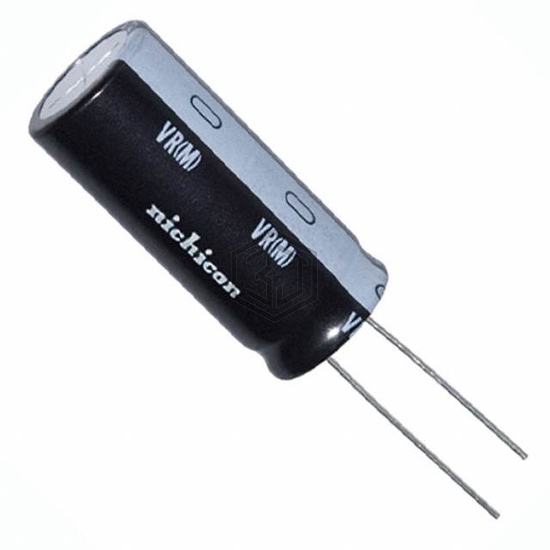

CAP ALUM 22000UF 20% 25V RADIAL
UVR1E223MRA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,818
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.175 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1E223MRA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215836223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 93% | View |
| EKMH350VSN223MA50U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 87% | View |
| 35MXC22000MEFC30X50 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 86% | View |
| ESMH350VNN223MA45S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 77% | View |
| B41231C4229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 76% | View |
| B41231B4229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 75% | View |
Submit your RFQ for UVR1E223MRA and get a quote within 24 hours.
