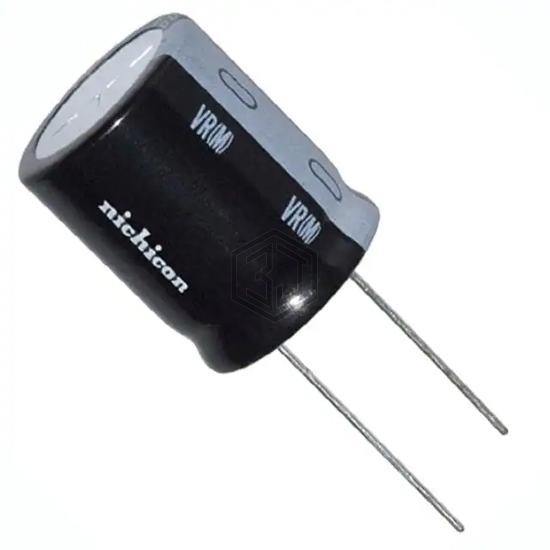

CAP ALUM 10000UF 20% 25V RADIAL
UVR1E103MRA6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,477
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.335 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1E103MRA6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860010381029 | Würth Elektronik | CAP ALUM 10000UF 20% 16V RADIAL | 83% | View |
| LLS1V103MELZ | Nichicon | CAP ALUM 10000UF 20% 35V SNAP | 77% | View |
| ELXZ6R3ELL103ML35S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 76% | View |
| MAL205674103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V SNAP | 67% | View |
| 50MXC10000MEFCSN30X50 | Rubycon | CAP ALUM 10000UF 20% 50V SNAP | 56% | View |
| MAL205678103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SNAP | 52% | View |
Submit your RFQ for UVR1E103MRA6 and get a quote within 24 hours.
