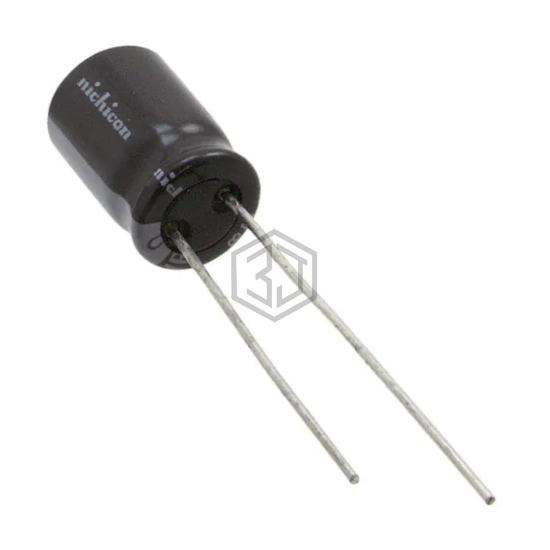

CAP ALUM 330UF 20% 16V RADIAL
UVR1C331MPA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,286
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1C331MPA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL203655331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 98% | View |
| EKY-160EC3331MHB5D | United Chemi-Con | CAP ALUM 330UF 20% 16V RADIAL | 93% | View |
| RA-331M1EBK-1012S | Surge | CAP ALUM 25V POLAR | 81% | View |
| 25YXA330MEFCT810X12.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 78% | View |
| ESY337M010AG3EA | KEMET | CAP ALUM 330UF 20% 10V RADIAL TH | 78% | View |
| 337SAK6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 6.3V RADIAL | 60% | View |
Submit your RFQ for UVR1C331MPA and get a quote within 24 hours.
