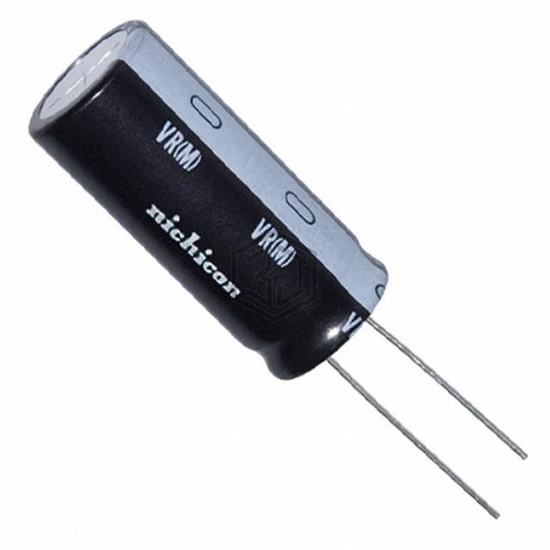

CAP ALUM 22000UF 20% 16V RADIAL
UVR1C223MRA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,811
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.83 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1C223MRA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXC22000MEFC30X35 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 85% | View |
| ESMH100VSN223MQ30U | United Chemi-Con | CAP ALUM 22000UF 20% 10V SNAP | 75% | View |
| EKMH500VQT223MB50U | United Chemi-Con | CAP ALUM 22000UF 20% 50V SNAP | 72% | View |
| MAL205056223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 25V RADIAL | 66% | View |
| MAL215627223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 64% | View |
| A751000 | EXXELIA Sic Safco | CAP ALUM 22000F 20% 10V RECTANGU | 56% | View |
