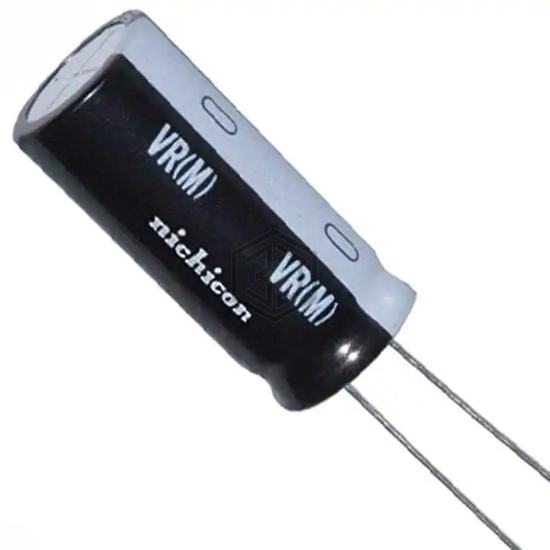

CAP ALUM 15000UF 20% 6.3V RADIAL
UVR0J153MHA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,697
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2775 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR0J153MHA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN6R3ELL153MMN3S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 89% | View |
| ELXG250VSN153MA35S | United Chemi-Con | CAP ALUM 15000UF 20% 25V SNAP | 76% | View |
| 159CKE010MQY | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15000UF 20% 10V RADIAL | 75% | View |
| MAL202144153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 73% | View |
| EKMH160VNN153MQ35U | United Chemi-Con | CAP ALUM 15000UF 20% 16V SNAP | 73% | View |
| LKG1E153MESCBK | Nichicon | CAP ALUM 15000UF 20% 25V SNAP | 60% | View |
Submit your RFQ for UVR0J153MHA and get a quote within 24 hours.
