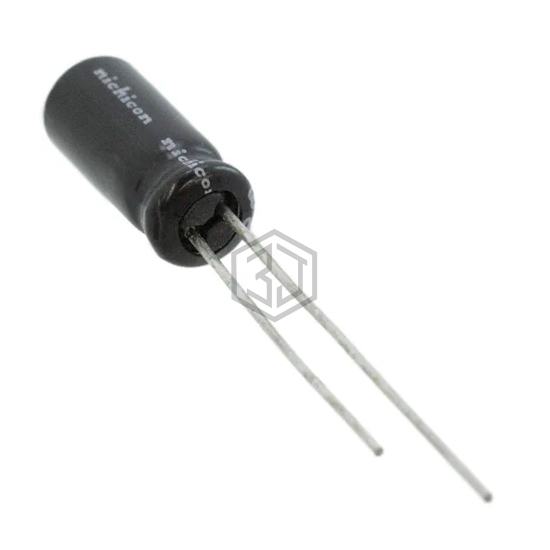

CAP ALUM 4.7UF 20% 35V RADIAL
UVP1V4R7MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,301
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 68 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1V4R7MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H4R7MDD1TA | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 83% | View |
| 50YXA4R7MTA5X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 83% | View |
| ESMG250ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 25V RADIAL | 82% | View |
| EKMQ101ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 100V RADIAL | 74% | View |
| MAL211829478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V AXIAL | 70% | View |
| UTS1V4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 55% | View |
