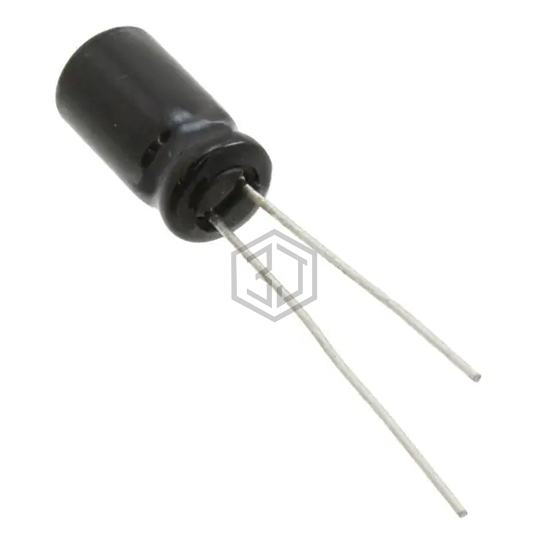

CAP ALUM 4.7UF 20% 63V RADIAL
UVP1J4R7MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,772
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1J4R7MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL203838478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V RADIAL | 100% | View |
| 475TMA063M | Cornell Dubilier Knowles | CAP ALUM 4.7UF 20% 63V AXIAL TH | 98% | View |
| ULD1H4R7MDD1TD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 90% | View |
| EEU-EB1H4R7S | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 70% | View |
| ECE-A1EKS4R7 | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 25V RADIAL | 57% | View |
| 400LEX4.7MEFC10X12.5 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 52% | View |
