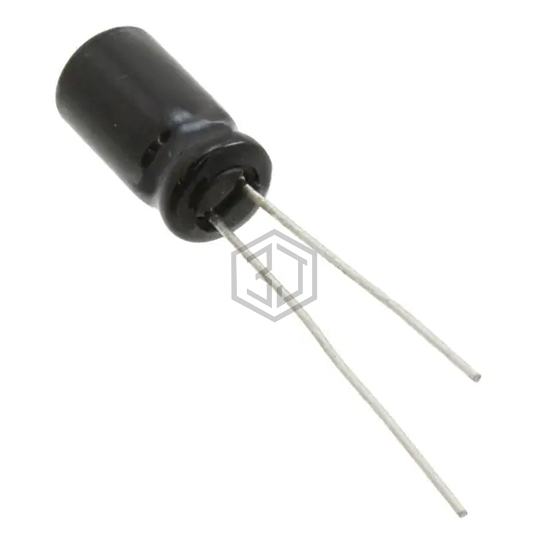

CAP ALUM 4.7UF 20% 63V RADIAL
UVP1J4R7MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,688
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 68 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1J4R7MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL203878478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V RADIAL | 91% | View |
| MAL209758478E6 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V RADIAL | 91% | View |
| UPJ1H4R7MDD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 85% | View |
| MALREKE05AA147L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V RADIAL | 81% | View |
| SEK4R7M250ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 250V RADIAL | 56% | View |
| ESMG251ELL4R7MHB5D | United Chemi-Con | CAP ALUM 4.7UF 20% 250V RADIAL | 51% | View |
