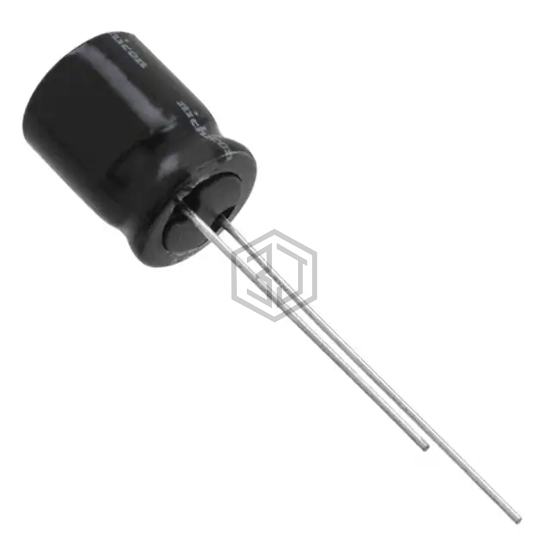

CAP ALUM 33UF 20% 63V RADIAL
UVP1J330MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,388
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1J330MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 94% | View |
| MAL214238339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 63V RADIAL | 81% | View |
| UBX1K330MPL | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 72% | View |
| UBX1K330MPL1TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 72% | View |
| 336BPA025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 25V AXIAL | 68% | View |
| 250YXF33MEFC12.5X25 | Rubycon | CAP ALUM 33UF 20% 250V RADIAL | 60% | View |
