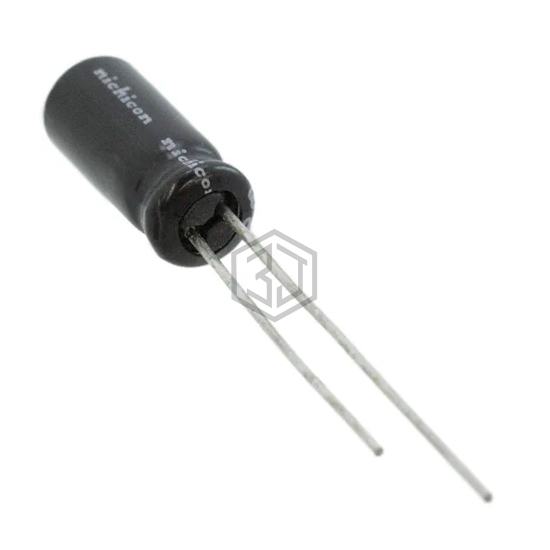

CAP ALUM 0.47UF 20% 50V RADIAL
UVP1HR47MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,298
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1HR47MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NEV.47M50AA | NTE Electronics, Inc | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| UPJ1HR47MDD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| ECE-A1HKSR47I | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| REA0511R47M050K | KYOCERA AVX | CAP ALUM 0.47UF 20% 50V RADIAL | 79% | View |
| UPS1HR47MDD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 74% | View |
| UVR2ER47MED1TA | Nichicon | CAP ALUM 0.47UF 20% 250V RADIAL | 69% | View |
