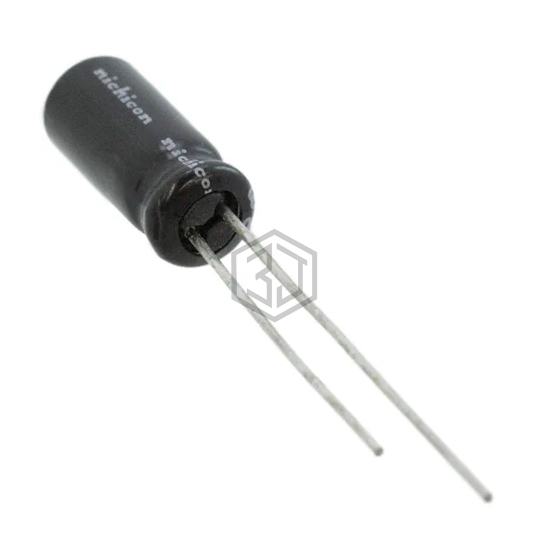

CAP ALUM 3.3UF 20% 50V RADIAL
UVP1H3R3MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,781
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1H3R3MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UTM1H3R3MED1TA | Nichicon | CAP ALUM 3.3UF 20% 50V RADIAL | 100% | View |
| URZ1H3R3MDD1TD | Nichicon | CAP ALUM 3.3UF 20% 50V RADIAL | 96% | View |
| UVY2G3R3MPD | Nichicon | CAP ALUM 3.3UF 20% 400V RADIAL | 66% | View |
| MAL212320338 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 35V AXIAL | 64% | View |
| RXJ3R3M2ABK-0511S | Surge | CAP ALUM 100V POLAR | 59% | View |
| MALREKA00AA133LL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for UVP1H3R3MDD1TA and get a quote within 24 hours.
