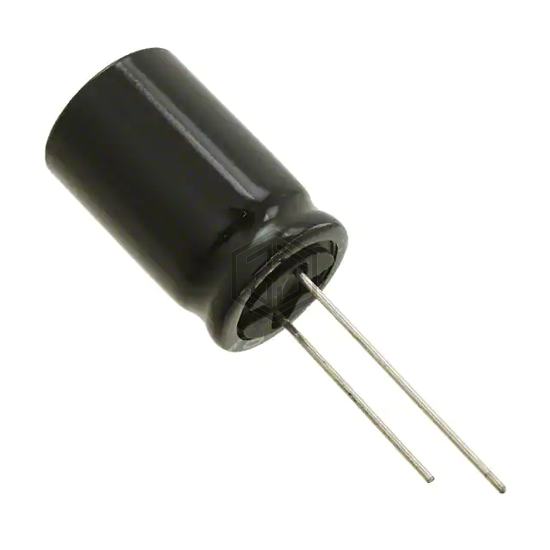

CAP ALUM 330UF 20% 50V RADIAL
UVP1H331MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,477
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 975 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1H331MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SK331M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 50V RADIAL | 100% | View |
| MAL211828331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 87% | View |
| EEU-FS1V331LB | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 76% | View |
| 100PK330MEFCG412.5X25 | Rubycon | CAP ALUM 330UF 20% 100V RADIAL | 74% | View |
| EEU-FM1E331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 64% | View |
| ESMQ201ELL331MM40S | United Chemi-Con | CAP ALUM 330UF 20% 200V RADIAL | 61% | View |
Submit your RFQ for UVP1H331MHD1TN and get a quote within 24 hours.
