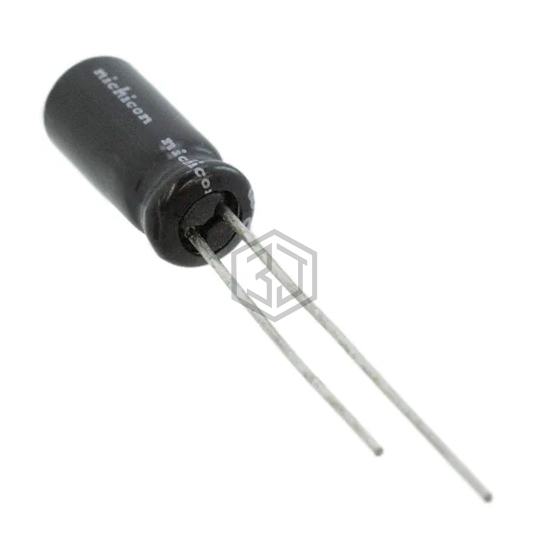

CAP ALUM 2.2UF 20% 50V RADIAL
UVP1H2R2MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,040
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1H2R2MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C6225M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 100% | View |
| TVX1H2R2MAD | Nichicon | CAP ALUM 2.2UF 20% 50V AXIAL | 96% | View |
| EL1H2R2MP20511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 86% | View |
| ULD1H2R2MDD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 79% | View |
| 50NXA2.2MEFC5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 65% | View |
| 50MH52.2MEFC4X5 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 62% | View |
Submit your RFQ for UVP1H2R2MDD1TA and get a quote within 24 hours.
