CAP ALUM 10UF 20% 50V RADIAL

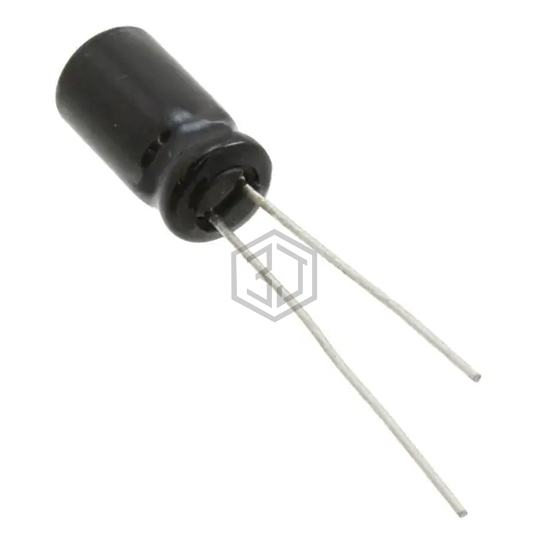

UVP1H100MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,259
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 104 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1H100MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USP1H100MDD1TA | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 95% | View |
| PF1J100MNN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 91% | View |
| SK100M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V RADIAL | 77% | View |
| B43851G2106M000 | EPCOS - TDK Electronics | CAP ALUM 10UF 20% 200V RADIAL | 69% | View |
| EEU-FC2A100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V RADIAL | 60% | View |
| PEG124MA2100QE4 | KEMET | CAP ALUM 10UF 20% 63V AXIAL | 58% | View |
Submit your RFQ for UVP1H100MED1TA and get a quote within 24 hours.
