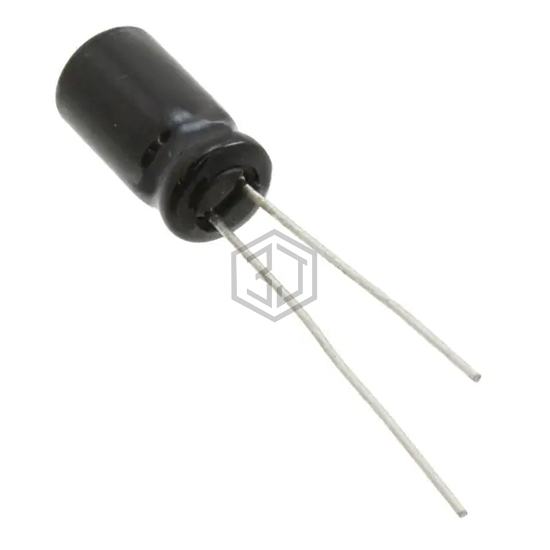

CAP ALUM 47UF 20% 25V RADIAL
UVP1E470MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,831
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 190 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1E470MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SKA470M025 | Cornell Dubilier Electronics (CDE) | ALUMINUM ELECTROLYTIC CAPACITOR | 100% | View |
| 16TWL47KEFC5X11 | Rubycon | CAP ALUM 47UF 10% 16V RADIAL | 80% | View |
| ESMQ350ELL470ME11D | United Chemi-Con | CAP ALUM 47UF 20% 35V RADIAL | 77% | View |
| B41888C8476M000 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 63V RADIAL | 58% | View |
| ESMQ630ELL470MF11D | United Chemi-Con | CAP ALUM 47UF 20% 63V RADIAL | 54% | View |
| UBT2C470MHD | Nichicon | CAP ALUM 47UF 20% 160V RADIAL | 53% | View |
Submit your RFQ for UVP1E470MED and get a quote within 24 hours.
