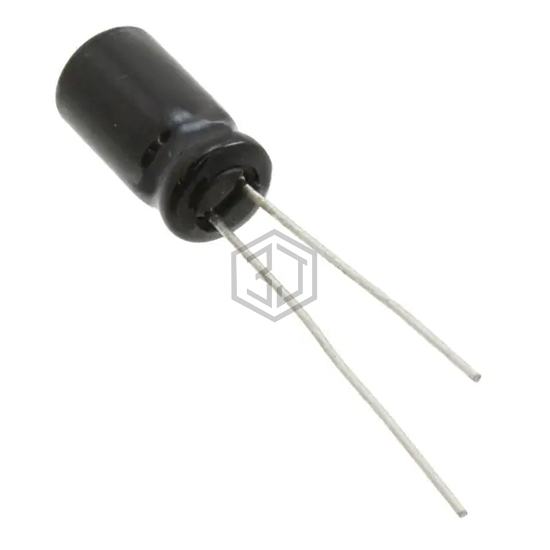

CAP ALUM 33UF 20% 25V RADIAL
UVP1E330MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,930
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1E330MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YK33MEFC5X11 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 93% | View |
| USP1E330MDD1TA | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 89% | View |
| 25MH733MEFCT56.3X7 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 83% | View |
| PF1H330MPZ0511RU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 73% | View |
| ELXY630ELL330MF15D | United Chemi-Con | CAP ALUM 33UF 20% 63V RADIAL | 66% | View |
| ECE-A1AN330UB | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V RADIAL | 66% | View |
