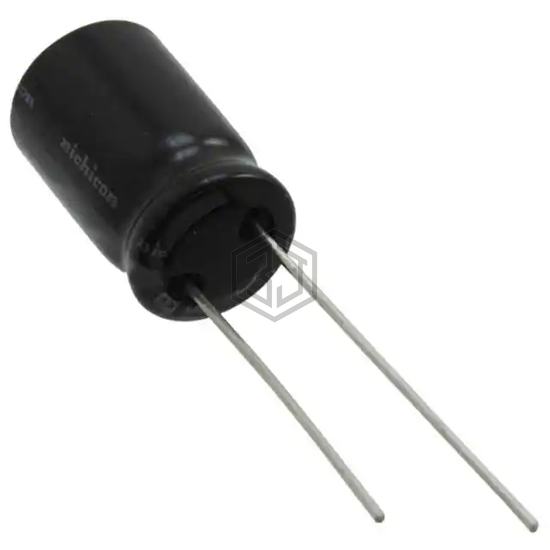

CAP ALUM 220UF 20% 25V RADIAL
UVP1E221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,122
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 457.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1E221MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UTM1E221MHD1TN | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 100% | View |
| UKT1V221MPD1TA | Nichicon | CAP ALUM 220UF 20% 35V RADIAL | 82% | View |
| UVY1H221MPD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 78% | View |
| 16YXH220MEFC8X11.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 71% | View |
| RJA221M1CBK-0611S | SURGE | CAP ALUM 220UF 20% 16V RADIAL | 64% | View |
| 16ML220MEFC8X7.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 53% | View |
