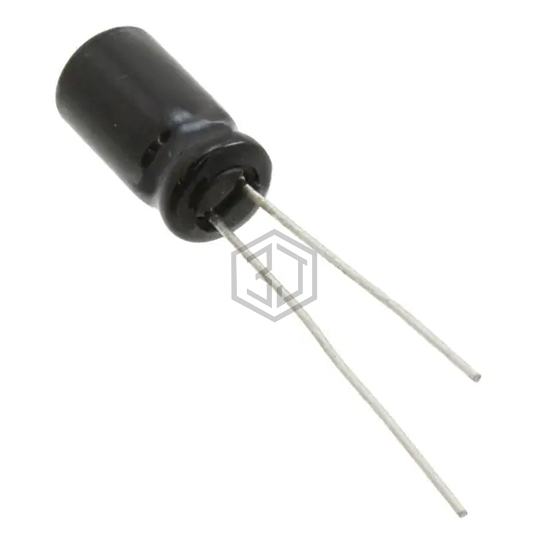

CAP ALUM 22UF 20% 25V RADIAL
UVP1E220MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,605
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1E220MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVR0J220MDD | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 79% | View |
| 35ZT22M5X11 | Rubycon | CAP ALUM 22UF 20% 35V RADIAL | 68% | View |
| ESMG630ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 63V RADIAL | 61% | View |
| 16MH522MEFCTZ5X5 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 58% | View |
| 10ZLG22MEFC4X7 | Rubycon | CAP ALUM 22UF 20% 10V RADIAL | 57% | View |
| 6.3MS722MEFCTZ4X7 | Rubycon | CAP ALUM 22UF 20% 6.3V RADIAL | 50% | View |
Submit your RFQ for UVP1E220MED and get a quote within 24 hours.
