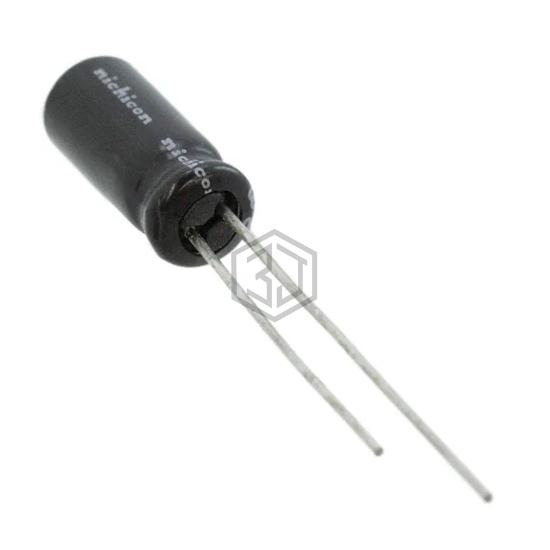

CAP ALUM 33UF 20% 10V RADIAL
UVP1A330MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,204
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 64 mA @ 120 Hz |
| Ripple Current @ High Frequency | 128 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1A330MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UES1A330MEM1TA | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 100% | View |
| ECE-A1AN330U | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V RADIAL | 98% | View |
| URS0J330MDD1TA | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 79% | View |
| UKA1E330MDD1TD | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 76% | View |
| 63YXG33MEFCCA6.3X11 | Rubycon | CAP ALUM 33UF 20% 63V RADIAL | 74% | View |
| 500D336M200FK2 | Vishay Sprague | CAP ALUM 33UF 20% 200V AXIAL | 56% | View |
