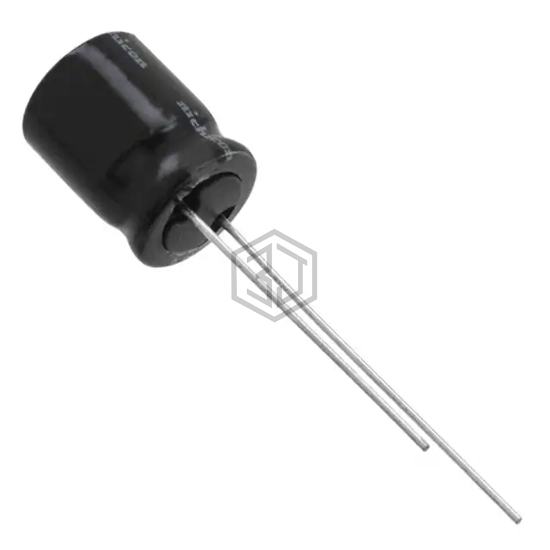

CAP ALUM 470UF 20% 6.3V RADIAL
UVP0J471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 798
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP0J471MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN471M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 6.3V RADIAL | 97% | View |
| MAL203853471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 6.3V RADIAL | 95% | View |
| SH471M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 25V RADIAL | 73% | View |
| EEU-FC1C471LB | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 63% | View |
| ESMG250ELL471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 60% | View |
| ECA-1VM471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for UVP0J471MPD and get a quote within 24 hours.
