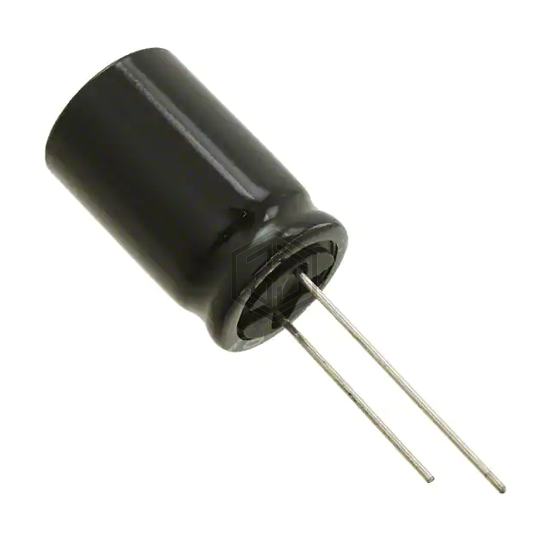

CAP ALUM 3300UF 20% 6.3V RADIAL
UVP0J332MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8055 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP0J332MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EST338M010AL4AA | KEMET | CAP ALUM RAD 105C | 79% | View |
| UPJ1A332MHD | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 76% | View |
| UVR1C332MHD1CP | Nichicon | CAP ALUM 16V POLAR | 75% | View |
| 601D338G030JT1 | Vishay Sprague | CAP ALUM 3300UF 30V AXIAL | 56% | View |
| VHT3300M63 | NTE Electronics, Inc | CAP ALUM 3300UF 20% 63V RADIAL | 56% | View |
| MAL225649332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 100V SNAP | 53% | View |
