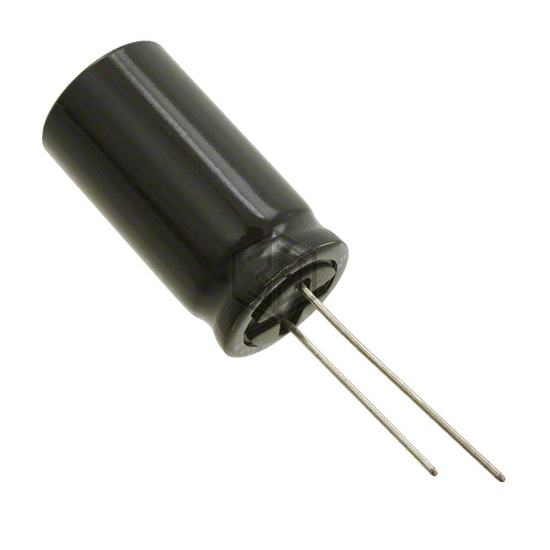

CAP ALUM 3300UF 20% 35V RADIAL
UVK1V332MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,542
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVK1V332MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215617332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 86% | View |
| MAL215066332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 85% | View |
| ELH338M050AR1AA | KEMET | CAP ALUM SNAP-IN 85C | 84% | View |
| EGPA250ELL332MK40S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 78% | View |
| 16PX3300MEFC12.5X20 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
| LKG2A332MESBAK | Nichicon | CAP ALUM 3300UF 20% 100V SNAP | 53% | View |
Submit your RFQ for UVK1V332MHD and get a quote within 24 hours.
