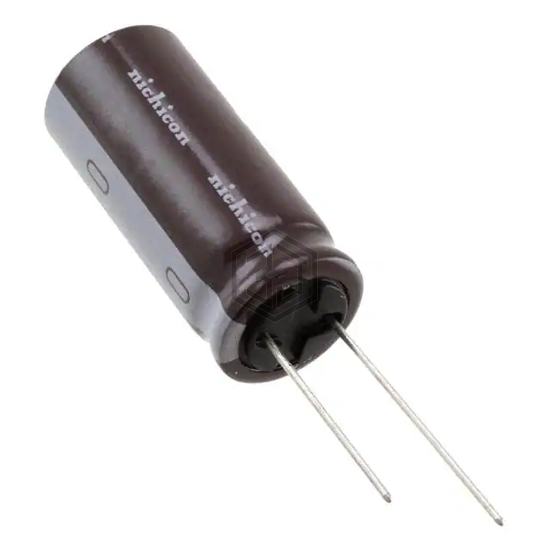

CAP ALUM 15000UF 20% 10V RADIAL
UVK1A153MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,730
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.312 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVK1A153MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SMH10VN153M25X25T2 | United Chemi-Con | CAP ALUM 15000UF 20% 10V SNAP | 97% | View |
| MALIEYN07LV515C42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 91% | View |
| MALIEYN07LV515C02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 91% | View |
| 16MXC15000MEFCSN22X35 | Rubycon | CAP ALUM 15000UF 20% 16V SNAP | 82% | View |
| 159LBB016M2BE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15000UF 20% 16V SNAP | 77% | View |
| VHT15000M6.3 | NTE Electronics, Inc | CAP ALUM 15000UF 20% 6.3V RADIAL | 70% | View |
Submit your RFQ for UVK1A153MHD and get a quote within 24 hours.
