CAP ALUM 47UF 20% 6.3V SMD

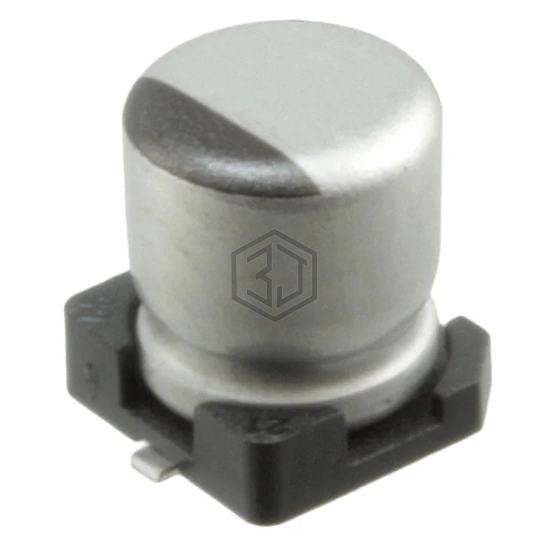

UUT0J470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 7,273
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUT0J470MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3JZV47M4X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 93% | View |
| UUP0J470MCL1GS | Nichicon | CAP ALUM 47UF 20% 6.3V SMD | 89% | View |
| 6.3SZV47M5X5.5 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 72% | View |
| 6.3TZV47M5X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 64% | View |
| CTB1V470MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| UUA1C470MCL1GS | Nichicon | CAP ALUM 47UF 20% 16V SMD | 63% | View |
Submit your RFQ for UUT0J470MCL1GS and get a quote within 24 hours.
