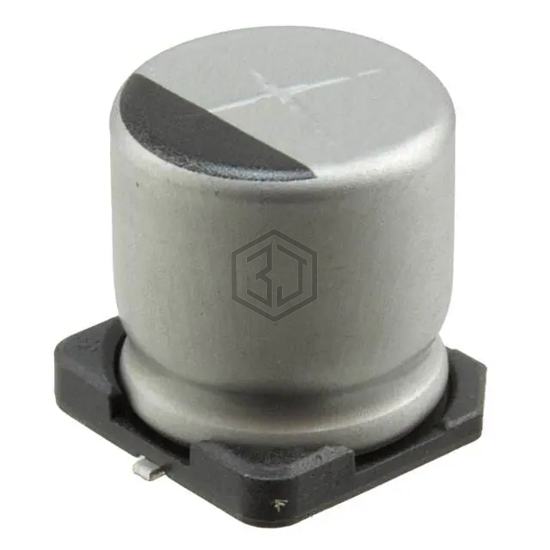

CAP ALUM 33UF 20% 100V SMD
UUR2A330MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 1,820
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 217.1 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUR2A330MNL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1K330MCL1GS | Nichicon | CAP ALUM 80V POLAR | 83% | View |
| VUA330M1JTR-1010S | Surge | CAP ALUM 63V POLAR | 82% | View |
| 865060645007 | Würth Elektronik | CAP ALUM 33UF 20% 50V SMD | 73% | View |
| EXV336M016S9GAA | KEMET | CAP ALUM 33UF 20% 16V SMD | 70% | View |
| EEE-FP1E330AP | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 61% | View |
| EMVA451GTR330MMN0S | United Chemi-Con | CAP ALUM 33UF 20% 450V SMD | 56% | View |
Submit your RFQ for UUR2A330MNL1GS and get a quote within 24 hours.
