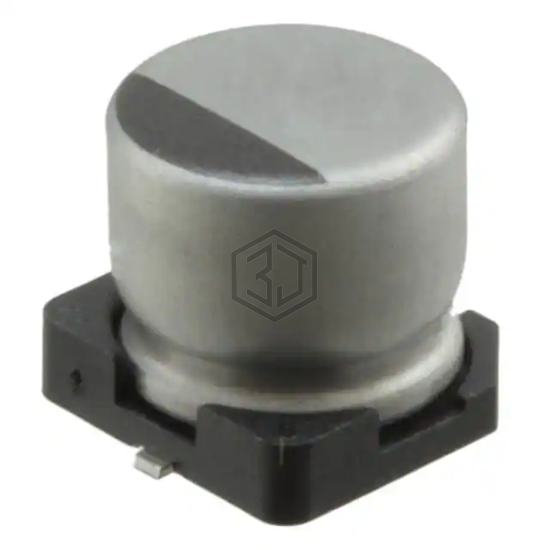

CAP ALUM 47UF 20% 35V SMD
UUR1V470MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,927
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 94 mA @ 120 Hz |
| Ripple Current @ High Frequency | 156.98 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUR1V470MCL6GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 84% | View |
| EDK476M050A9HAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 80% | View |
| VE-470M1ETR-0605S | SURGE | CAP ALUM 47UF 20% 25V SMD | 79% | View |
| 865080753013 | Würth Elektronik | CAP ALUM 47UF 20% 63V SMD | 73% | View |
| EEE-FK1K470SL | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 72% | View |
| EDK476M016A9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 58% | View |
