CAP ALUM 220UF 20% 6.3V SMD

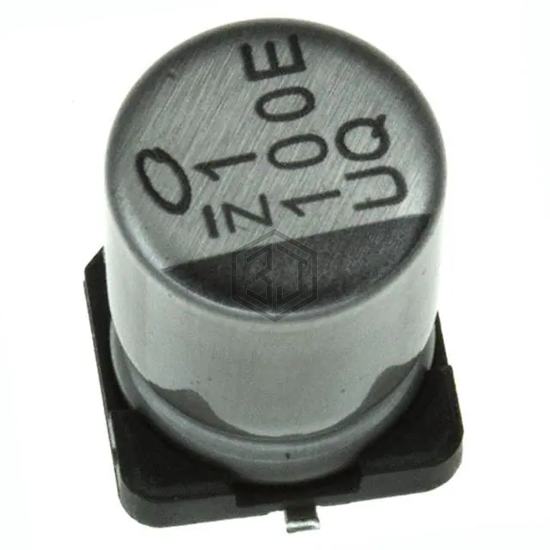

UUQ0J221MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 4,603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 315 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDH227M010S9MAA | KEMET | CAP ALUM 220UF 20% 10V SMD | 80% | View |
| UCM0J221MCL1GS | Nichicon | CAP ALUM 220UF 20% 6.3V SMD | 80% | View |
| EEE-FK1A221SP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 75% | View |
| 4SKV220M6.3X5.5 | Rubycon | CAP ALUM 220UF 20% 4V SMD | 71% | View |
| EDH227M025S9PAA | KEMET | CAP ALUM 220UF 20% 25V SMD | 65% | View |
| MAL216099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 60% | View |
Submit your RFQ for UUQ0J221MCL6GS and get a quote within 24 hours.
