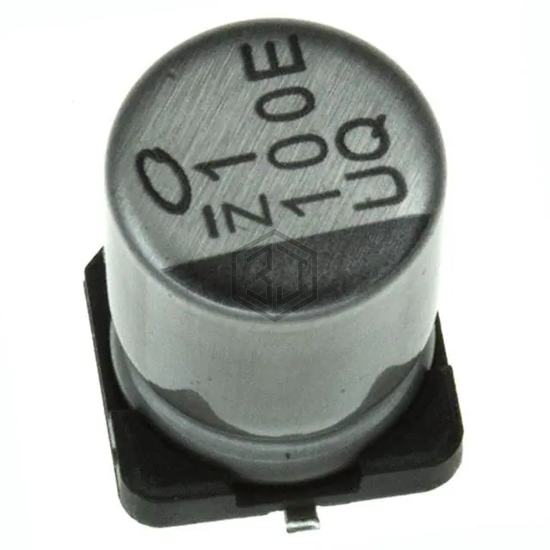

CAP ALUM 220UF 20% 6.3V SMD
UUQ0J221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 102 mA @ 120 Hz |
| Ripple Current @ High Frequency | 153 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT227M6V3HEJTA | Aillen | CAP. ALUM 220UF 6.3V 20% SMD | 98% | View |
| UWZ1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 85% | View |
| EDH227M6R3A9GAA | KEMET | CAP ALUM 220UF 20% 6.3V SMD | 84% | View |
| UUL1A221MNL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 70% | View |
| EMZR100ARA221MF61G | United Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 61% | View |
| 50JZV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 50V SMD | 56% | View |
Submit your RFQ for UUQ0J221MCL1GS and get a quote within 24 hours.
