CAP ALUM 33UF 20% 25V SMD

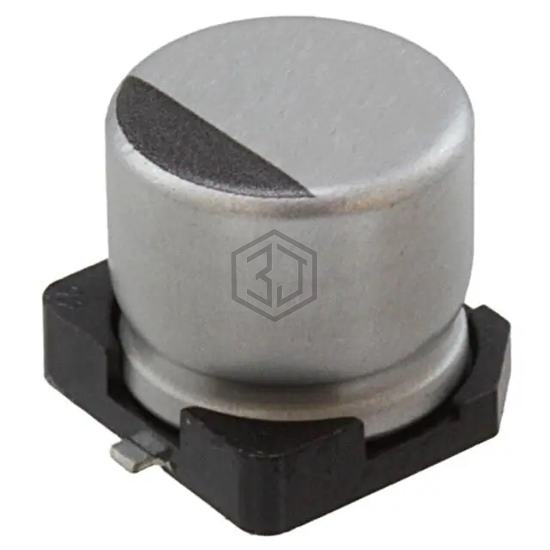

UUL1E330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | 72 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-HD1E330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 93% | View |
| 336SVL035MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V SMD | 78% | View |
| EMLA350ADA330MF61G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 70% | View |
| EEE-HB1C330AP | Panasonic Electronic Components | CAP ALUM 33UF 20% 16V SMD | 69% | View |
| ULT2C330MNL1GS | Nichicon | CAP ALUM 33UF 20% 160V SMD | 64% | View |
| EEE-HD1J330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V SMD | 51% | View |
Submit your RFQ for UUL1E330MCL1GS and get a quote within 24 hours.
