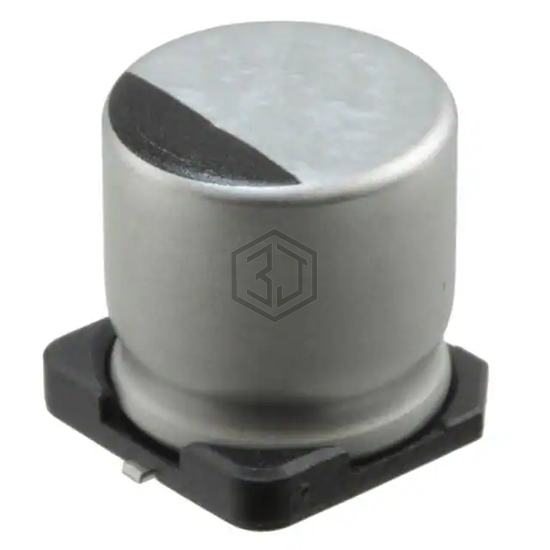

CAP ALUM 470UF 20% 16V SMD
UUL1C471MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 254 mA @ 120 Hz |
| Ripple Current @ High Frequency | 381 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16TGV470M10X10.5 | Rubycon | CAP ALUM 470UF 20% 16V SMD | 85% | View |
| UUD1A471MNL1GS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 79% | View |
| EEE-FK1C471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 75% | View |
| 10TXV470M10X10.5 | Rubycon | CAP ALUM 470UF 20% 10V SMD | 72% | View |
| EMK1EM471GB0D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 71% | View |
| MAL214097301E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 6.3V SMD | 65% | View |
