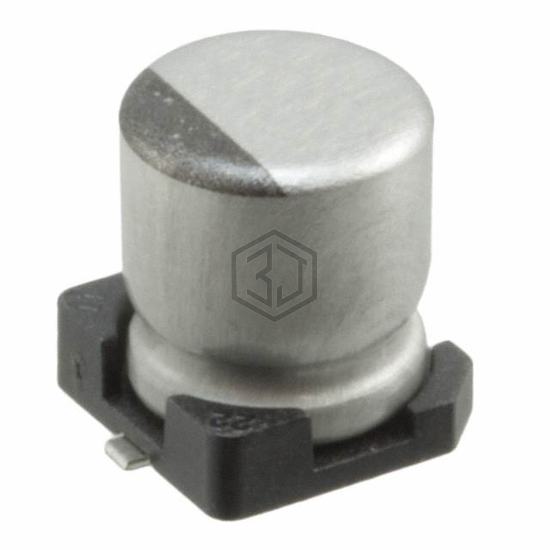

CAP ALUM 47UF 20% 6.3V SMD
UUL0J470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES476M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 93% | View |
| EDH476M6R3S9BAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 88% | View |
| MAL215375479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 16V SMD | 63% | View |
| UWH1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 59% | View |
| 476AXZ6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 6.3V SMD | 58% | View |
| EDH476M010A9GAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 58% | View |
Submit your RFQ for UUL0J470MCL1GS and get a quote within 24 hours.
