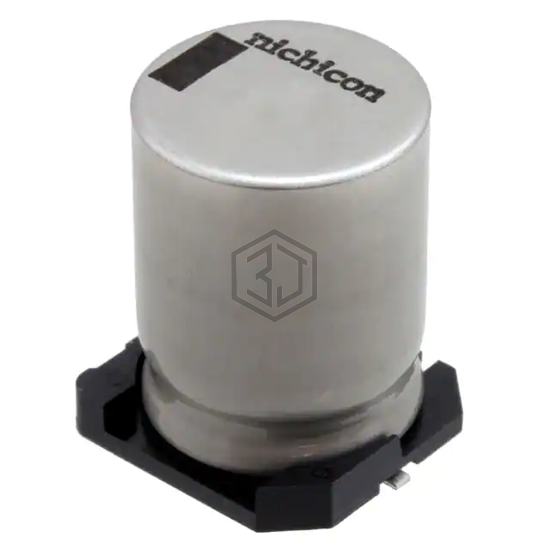

CAP ALUM 33UF 20% 450V SMD
UUJ2W330MRQ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 1,688
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 256 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.831" L x 0.831" W (21.10mm x 21.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ2W330MRQ1MS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1V330V | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V SMD | 75% | View |
| EEE-FK2A330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V SMD | 71% | View |
| 50THV33M8X10.5 | Rubycon | CAP ALUM 33UF 20% 50V SMD | 70% | View |
| MAL215379339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V SMD | 69% | View |
| UWD1E330MCL1GS | Nichicon | CAP ALUM 33UF 20% 25V SMD | 68% | View |
| EMLA350ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 63% | View |
Submit your RFQ for UUJ2W330MRQ1MS and get a quote within 24 hours.
