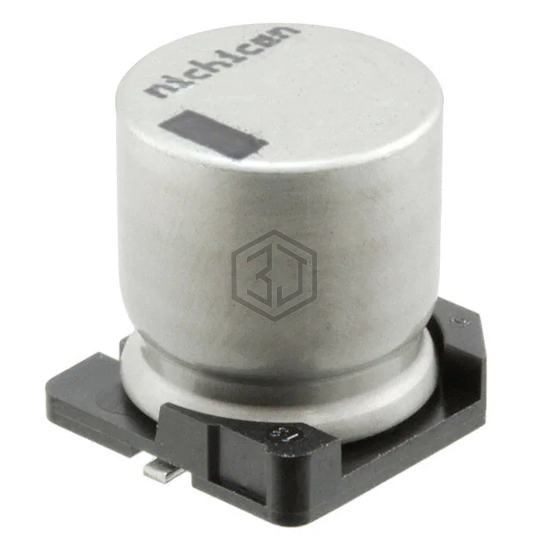

CAP ALUM 47UF 20% 100V SMD
UUJ2A470MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 7,622
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 320 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ2A470MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50SKV47M10X10.5 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 72% | View |
| EEV-FK2A470Q | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V SMD | 69% | View |
| EEE-FK1V470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 69% | View |
| EMZA800ADA470MJA0G | United Chemi-Con | CAP ALUM 47UF 20% 80V SMD | 65% | View |
| UZ476M035HEHTA | Aillen | CAP. ALUM 47UF 35V 20% SMD | 62% | View |
| UWG1H470MNL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 58% | View |
Submit your RFQ for UUJ2A470MNQ1ZD and get a quote within 24 hours.
