CAP ALUM 470UF 20% 16V SMD

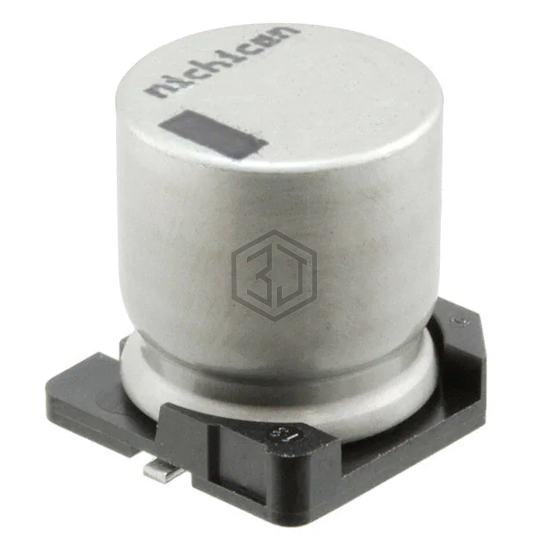

UUJ1C471MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,316
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ1C471MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1C471MCL6GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 95% | View |
| EEE-FK1C471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 93% | View |
| UWD1C471MCL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 85% | View |
| EMVY250ADA471MJA0G | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 79% | View |
| EEE-FK1E471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 63% | View |
| MAL214099013E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V SMD | 56% | View |
