CAP ALUM 22UF 20% 250V SMD

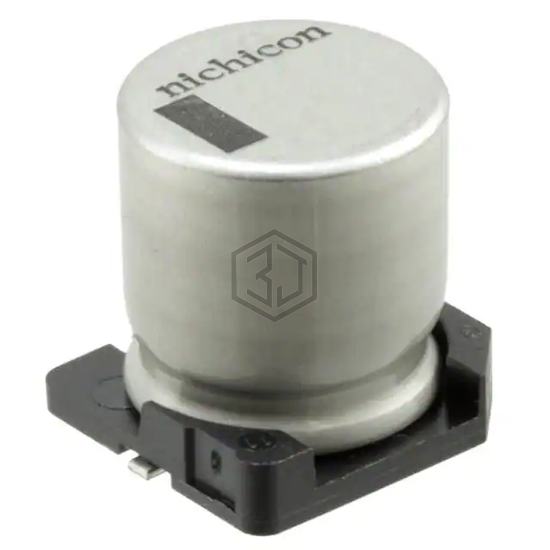

UUG2E220MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - SMD.
In Stock: 3,935
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 384 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG2E220MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUG2D220MNL1MS | Nichicon | CAP ALUM 22UF 20% 200V SMD | 92% | View |
| UUJ2E220MNQ6ZD | Nichicon | CAP ALUM 22UF 20% 250V SMD | 86% | View |
| MAL215299606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V SMD | 67% | View |
| ATB226M050 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V SMD | 57% | View |
| 25SGV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 25V SMD | 56% | View |
| 10SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 10V SMD | 56% | View |
