CAP ALUM 10UF 20% 250V SMD

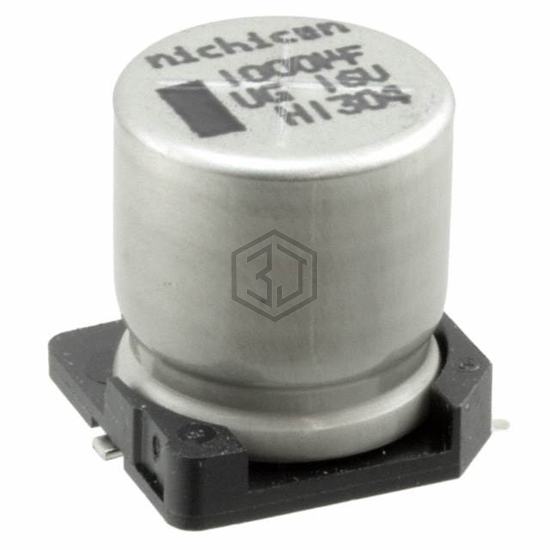

UUG2E100MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 250V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - SMD.
In Stock: 1,485
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG2E100MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVA451ARA100MLH0S | United Chemi-Con | CAP ALUM 10UF 20% 450V SMD | 79% | View |
| AFK106M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 65% | View |
| EEE-FT1H100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 62% | View |
| 25SKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 56% | View |
| 106NPS050MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 56% | View |
| EMK1HM100E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
