CAP ALUM 22UF 20% 200V SMD

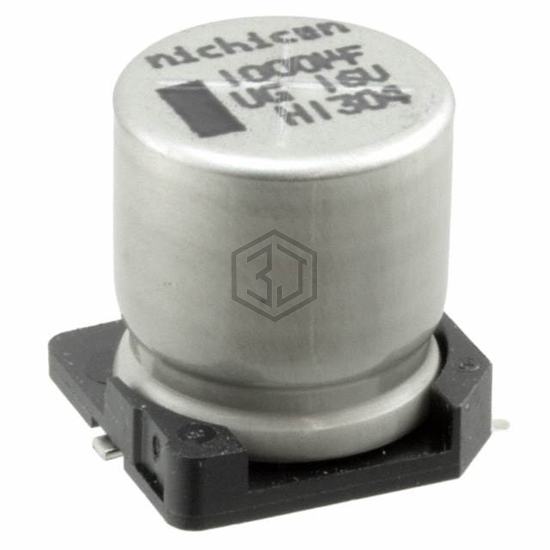

UUG2D220MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 6,050
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 235 mA @ 120 Hz |
| Ripple Current @ High Frequency | 376 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG2D220MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE251ADA220MLH0S | United Chemi-Con | CAP ALUM 22UF 20% 250V SMD | 82% | View |
| MAL214699801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V SMD | 77% | View |
| EEE-FP1E220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 58% | View |
| UZR0G220MCR1GB | Nichicon | CAP ALUM | 56% | View |
| EMVE451GTR220MMN0S | United Chemi-Con | CAP ALUM 22UF 20% 450V SMD | 52% | View |
| RVJ-100V220MH10U-R | Elna America | CAP 22UF 100V SMD | 50% | View |
Submit your RFQ for UUG2D220MNQ1ZD and get a quote within 24 hours.
