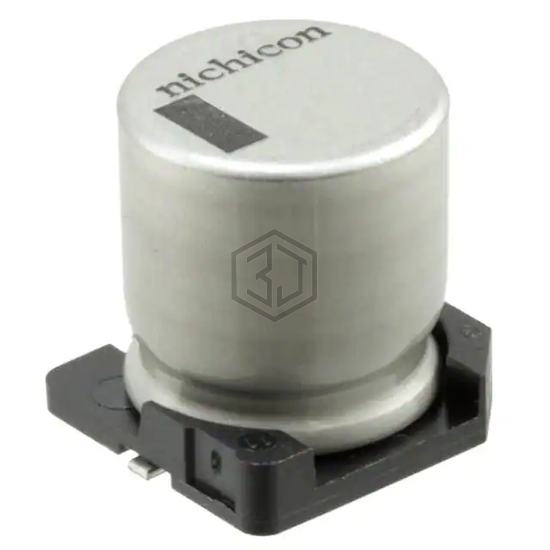

CAP ALUM 68UF 20% 160V SMD
UUG2C680MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - SMD.
In Stock: 3,999
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG2C680MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUJ2C680MNQ1MS | Nichicon | CAP ALUM 68UF 20% 160V SMD | 85% | View |
| UUG2E680MNQ1ZD | Nichicon | CAP ALUM 68UF 20% 250V SMD | 85% | View |
| UUJ2D680MNQ1MS | Nichicon | CAP ALUM 68UF 20% 200V SMD | 77% | View |
| EEE-FK2A680AQ | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 68% | View |
| EEE-FK1K680AQ | Panasonic Electronic Components | CAP ALUM 68UF 20% 80V SMD | 61% | View |
| AFK686M63G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 63V SMD | 50% | View |
