CAP ALUM 2200UF 20% 25V SMD

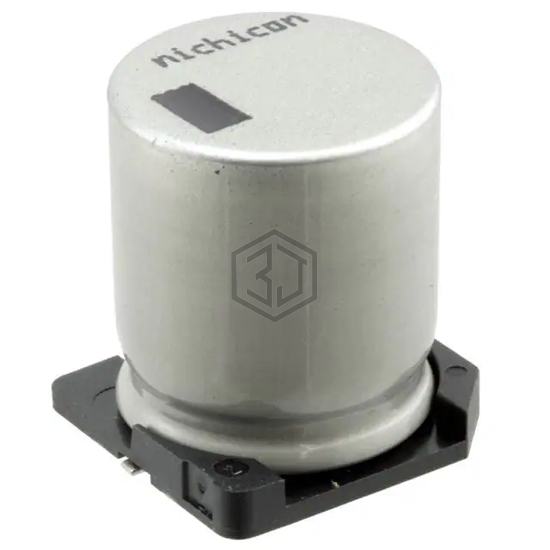

UUG1E222MNQ6ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,163
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5525 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG1E222MNQ6ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVY25VE222MM22TR | United Chemi-Con | CAP ALUM 2200UF 20% 25V SMD | 96% | View |
| UUJ1V222MRA1MS | Nichicon | CAP ALUM 2200UF 20% 35V SMD | 82% | View |
| UUJ1V222MNJ6MS | Nichicon | CAP ALUM 2200UF 20% 35V SMD | 82% | View |
| UUE1C222MNS1MS | Nichicon | CAP ALUM 2200UF 20% 16V SMD | 74% | View |
| EEE-FT0J222GV | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V SMD | 61% | View |
| EEE-FK1A222AQ | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V SMD | 59% | View |
