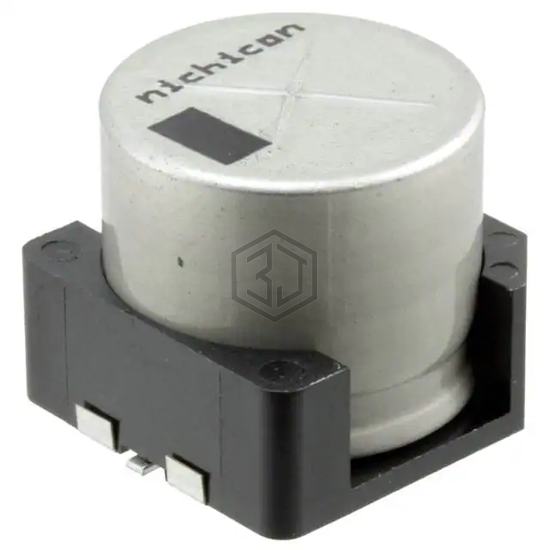

CAP ALUM 470UF 20% 50V SMD
UUE1H471MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,788
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 636.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214699811E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 90% | View |
| MAL214699108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V SMD | 88% | View |
| MAL214099013E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V SMD | 84% | View |
| MAL214699712E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 80V SMD | 81% | View |
| UUE1E471MNS1MS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 76% | View |
| UUE1A471MNS1MS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 68% | View |
