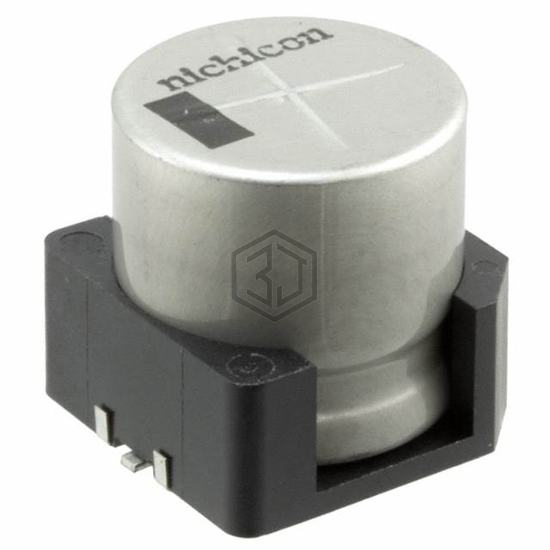

CAP ALUM 680UF 20% 25V SMD
UUE1E681MNS6MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 804 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUE1E681MNS1MS | Nichicon | CAP ALUM 680UF 20% 25V SMD | 100% | View |
| MAL216099004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V SMD | 74% | View |
| MAL214099015E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 35V SMD | 73% | View |
| MAL224699813E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 63V SMD | 69% | View |
| MAL214097411E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V SMD | 58% | View |
| MAL214099117E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V SMD | 54% | View |
