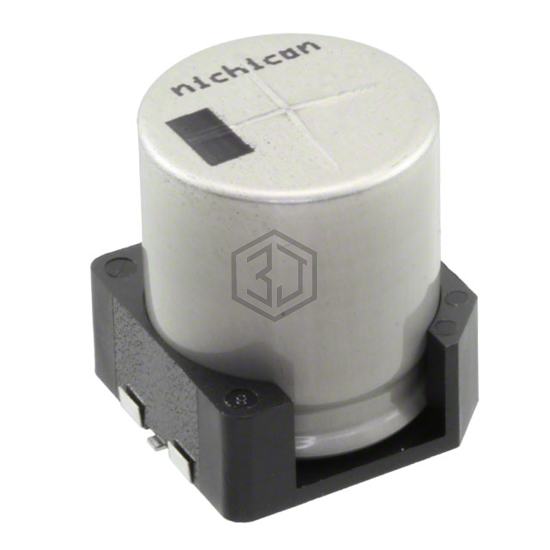

CAP ALUM 1000UF 20% 25V SMD
UUE1E102MNS1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,850
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.349 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUE1E102MNS1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216099604E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V SMD | 80% | View |
| MAL214699008E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V SMD | 78% | View |
| MAL224699008E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V SMD | 78% | View |
| EEE-TP1H102M | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V SMD | 68% | View |
| MAL214099514E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 66% | View |
| MAL214699814E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V SMD | 65% | View |
Submit your RFQ for UUE1E102MNS1ZD and get a quote within 24 hours.
