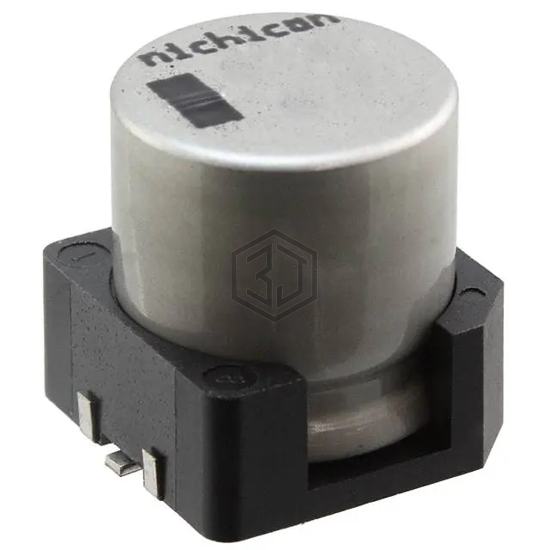

CAP ALUM 680UF 20% 10V SMD
UUE1A681MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 603 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097512E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 79% | View |
| MAL216099603E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V SMD | 68% | View |
| MAL214099114E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V SMD | 68% | View |
| MAL214699109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V SMD | 64% | View |
| MAL214699604E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V SMD | 60% | View |
| MAL224699007E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V SMD | 59% | View |
Submit your RFQ for UUE1A681MNS1MS and get a quote within 24 hours.
