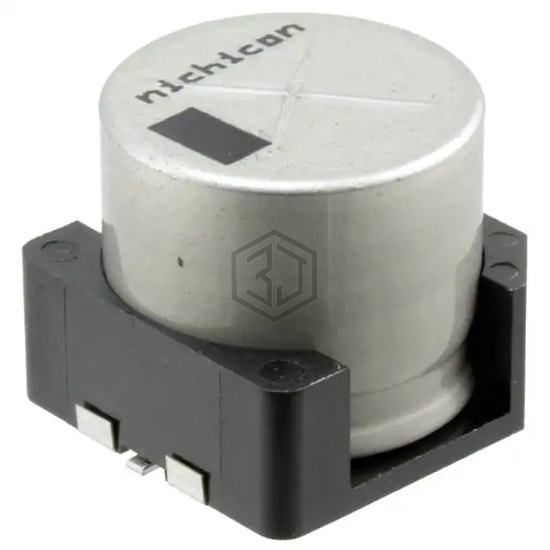

CAP ALUM 3300UF 20% 10V SMD
UUE1A332MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 3,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.044 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099415E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V SMD | 93% | View |
| MAL214699508E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 80% | View |
| MAL224699508E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 80% | View |
| MAL214099519E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 79% | View |
| MAL226099507E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 77% | View |
| MAL216099507E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 76% | View |
Submit your RFQ for UUE1A332MNS1MS and get a quote within 24 hours.
