CAP ALUM 22UF 20% 35V SMD

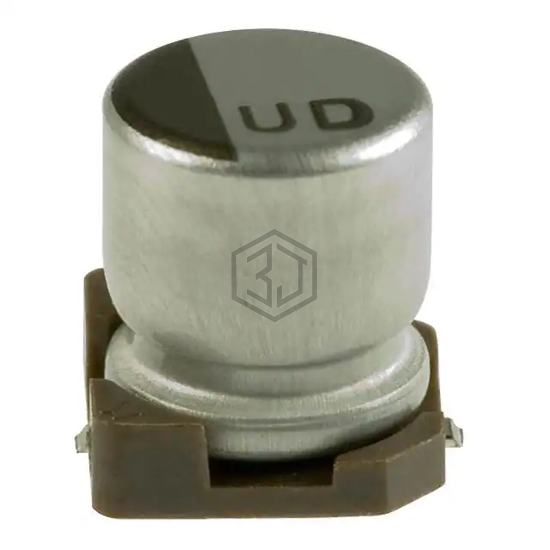

UUD1V220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,002
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 760 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 94% | View |
| UWG1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 85% | View |
| 50SGV22M8X6.5 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 79% | View |
| 25SGV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 25V SMD | 78% | View |
| EXV226M016S9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 69% | View |
| AFK226M06B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 6.3V SMD | 62% | View |
Submit your RFQ for UUD1V220MCL1GS and get a quote within 24 hours.
