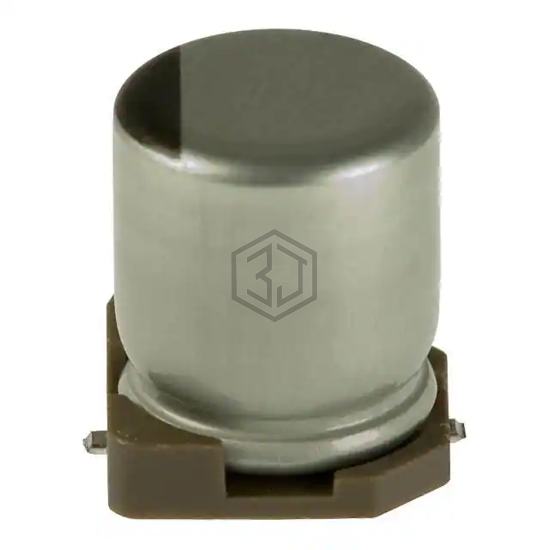

CAP ALUM 100UF 20% 25V SMD
UUD1E101MCR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,183
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUD1E101MCR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK107M25E16VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 83% | View |
| EEE-FK1C101V | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 77% | View |
| 16SGV100M6.3X6.1 | Rubycon | CAP ALUM 100UF 20% 16V SMD | 71% | View |
| EMVY160ADA101MF60G | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 71% | View |
| EMK0JM101E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
| 4SGV100M5X6.1 | Rubycon | CAP ALUM 100UF 20% 4V SMD | 56% | View |
