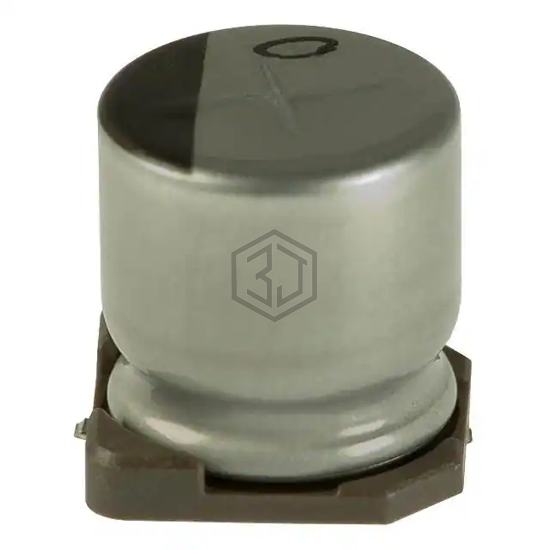

CAP ALUM 680UF 20% 16V SMD
UUD1C681MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,333
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUD1C681MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY160ADA681MJA0G | United Chemi-Con | CAP ALUM 680UF 20% 16V SMD | 90% | View |
| EEE-FK1C681AP | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 82% | View |
| EEE-FK1C681P | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 80% | View |
| AFK687M16G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 16V SMD | 80% | View |
| UWZ1A681MCL1GS | Nichicon | CAP ALUM 680UF 20% 10V SMD | 75% | View |
| 865080257013 | Würth Elektronik | CAP ALUM 680UF 20% 10V SMD | 72% | View |
Submit your RFQ for UUD1C681MNR1GS and get a quote within 24 hours.
