CAP ALUM 27UF 20% 10V SMD

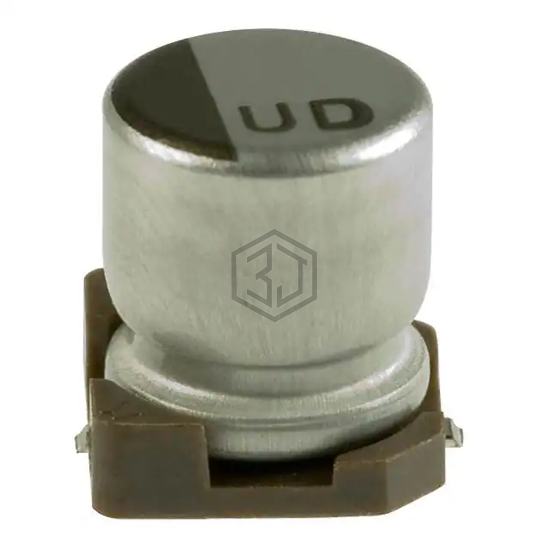

UUD1A270MCR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,691
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 760 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUD1A270MCR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN2A270UV | Panasonic Electronic Components | CAP ALUM 27UF 20% 100V SMD | 73% | View |
| EEE-FN2A270UL | Panasonic Electronic Components | CAP ALUM 27UF 20% 100V SMD | 73% | View |
| UWD1H270MCL1GS | Nichicon | CAP ALUM 27UF 20% 50V SMD | 72% | View |
| 865080443005 | Würth Elektronik | CAP ALUM 27UF 20% 25V SMD | 62% | View |
| EEE-FK1E270SR | Panasonic Electronic Components | CAP ALUM 27UF 20% 25V SMD | 61% | View |
| UWD1E270MCL1GS | Nichicon | CAP ALUM 27UF 20% 25V SMD | 57% | View |
Submit your RFQ for UUD1A270MCR1GS and get a quote within 24 hours.
