CAP ALUM 22UF 20% 10V SMD

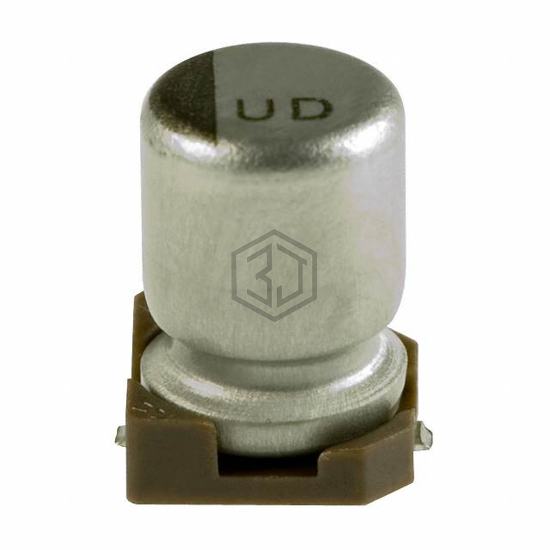

UUD1A220MCR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,188
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUD1A220MCR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1A220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 85% | View |
| 226SMH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 80% | View |
| 16SGV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 80% | View |
| EXV226M6R3S9BAA | KEMET | CAP ALUM 22UF 20% 6.3V SMD | 71% | View |
| EEV226M016A9BAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 71% | View |
| UT226M035HEHTA | Aillen | CAP. ALUM 22UF 35V 20% SMD | 71% | View |
