CAP ALUM 330UF 20% 6.3V SMD

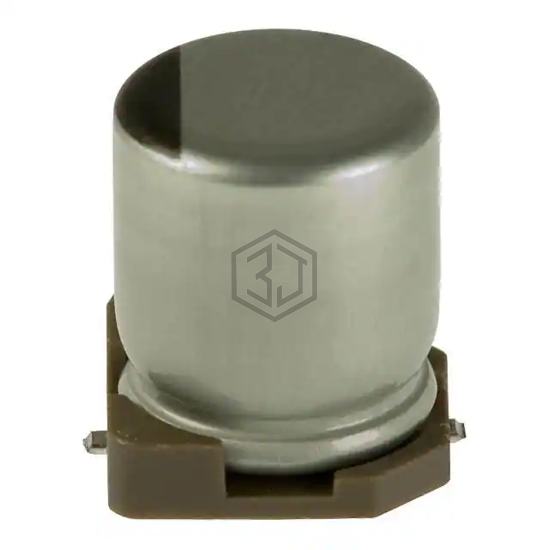

UUD0J331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 7,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZR6R3ARA331MF61G | United Chemi-Con | CAP ALUM 330UF 20% 6.3V SMD | 97% | View |
| MAL214097303E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 6.3V SMD | 95% | View |
| 6.3JZV330MBOZ6.3X8 | Rubycon | CAP ALUM 330UF 20% 6.3V SMD | 93% | View |
| 337SVL6R3MFE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 6.3V SMD | 80% | View |
| MAL214099401E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V SMD | 78% | View |
| EMVY250ADA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 61% | View |
Submit your RFQ for UUD0J331MCL1GS and get a quote within 24 hours.
